SIP-100

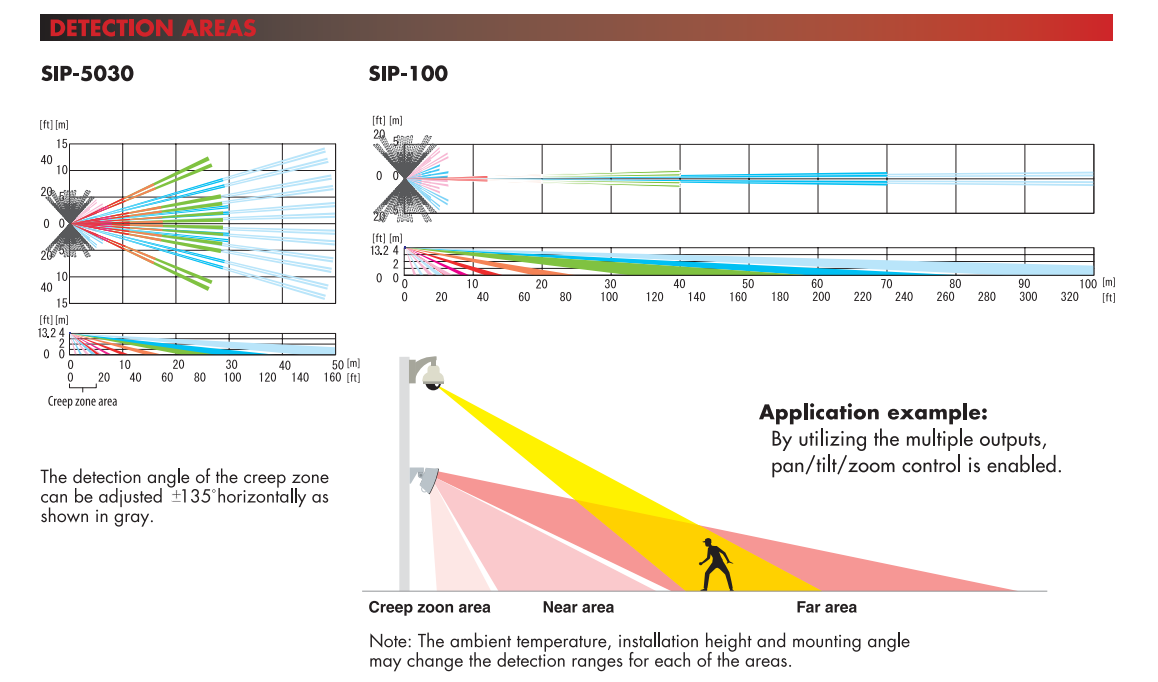

The SIP-100 offers detection with a long-range of 100 m (300 ft.) and a total of three outputs: two separate outputs for far and near areas and another for creep-zone detection. Multiple outputs are useful for activating video transmission systems and controlling PTZ cameras. The detection angle in the main area of the SIP-5030 and SIP-100 can be adjusted to easily match the camera field of view. And, the creep zone detector can be used for detection below and around the unit.

The SIP-5030 and SIP-100 are also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit.

• Intelligent PIR detection system
  • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Double Dual/One Quad pryo-elements with patented Double Conductive Shielding for main area SIP-5030
  • Double Quad pyro-elements with patented Double Conductive Shielding for main area SIP-100
• Built-in creep zone detector (Double dual pyro-elements)
• Anti-vandalism functions
  • Anti-rotation function with 3-axis accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max. 4m (13ft.) installation height
• Independent sensitivity selector for creep/near/far areas
• Independent N.C. and N.O. output for the main area SIP-5030
• 2 x N.C. and N.O. independent output for main areas (Near and Far areas) SIP-100
• Adjustable alarm interval time
• BS8418 Compliant – U.K.
