OVS-01CC

OVS 01CC

OVS-01CC



Microwave (Doppler shift and FMCW)

  • Car counting sensor
  • Pole mount sensor – no civil engineering work required

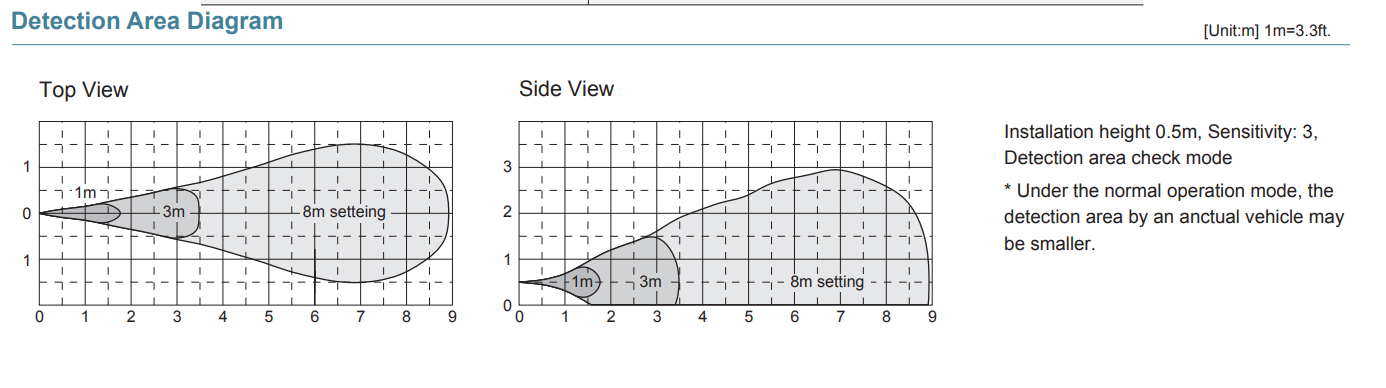

  • Microwave (FMCW) detection adjustable from 1 to 8m
  • Reliable in a harsh environment (snow, dust, rain)
  • Detecting vehicles at a speed from 2 to 60km/h
  • IP65

OPTEX OVS-01CC is designed to reliably detect a vehicle in the detection area while also having the ability to ignore most human traffic. It also eliminates the hassles associated with the installation of a ground loop. No more concrete cutting required. The OVS-01CC is installed above ground and can detect both small and large vehicles with no influence for vehicle body color technically. Its detection area can be customized with 8 range settings, 5 sensitivity settings, and 2 outputs (N.O./N.C.) And because it is important to ignore human movement in car-counting applications, the OVS-01CC has 5 selectable menu setting options to ignore the movement of people through the detection area.

  • High-performance sensing with Microwave (Doppler shift and FMCW)
  • Pole mount sensor – no civil engineering work required
  • Microwave (FMCW) detection adjustable from 1 to 8m
  • Reliable in a harsh environment (snow, dust, rain)
  • Detecting vehicles at a speed from 2 to 60km/h
  • Built-in heater (Automatically activates based on the outside temperature)
  • IP65
  • Building
  • Shopping mall
  • House
  • Pole mount sensor – no civil engineering work required
  • Microwave (FMCW) detection adjustable from 1 to 8m
  • Reliable in a harsh environment (snow, dust, rain)
  • Detecting vehicles at a speed from 2 to 60km/h
  • IP65

OVS-01CC_Specsifications
