CX-702

CX-702

CX-702

The CX-702 series is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications.
  • 70 x 70′ or 150 x 8′ Indoor PIR
  • Multi-Focus Optics (Patent Listed)
  • Double Conductive Shielding (Patent Listed)
  • Completely Sealed Optics with Dual Structure

The CX-702 is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications. With patented Multi-Focus technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast. Combined with Double Conductive Shielding and Temperature Compensation, a high level of false alarm protection is guaranteed. In addition, a unique feature to the CX-702 is the ability to choose between a 70' x 70' pattern and a 150' x 8' with a simple flip of the lens.

  • Buildings
  • Roof / Ceiling
  • Multi-focus technology
  • Double conductive shielding
  • Temperature compensation
  • Sealed optics
  • Spherical lens design
  • 3-step lens angle adjustment
  • Dual purpose optics : wide-angle or long-range

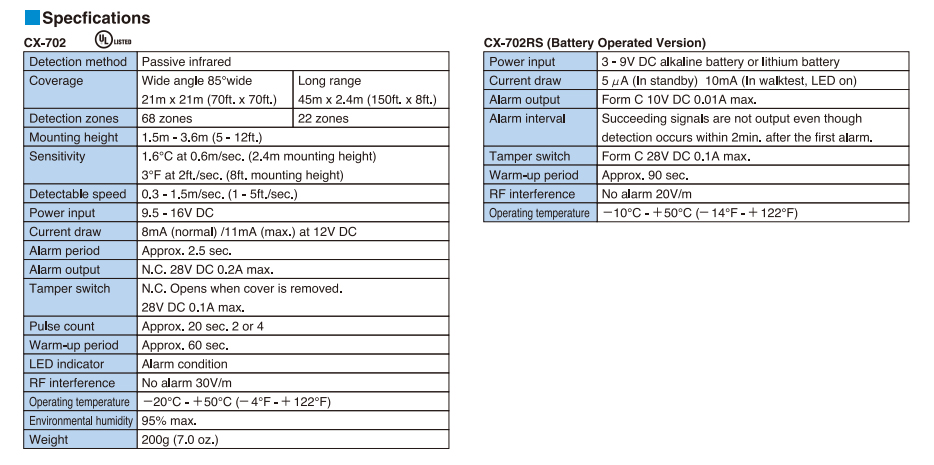

optex cx 702 specification

CA 2C 1 200x200 1

CA-2C

  • Multi Angle Ceiling Mount Bracket
    for
    • CX-702/702RS/702MKII
CA 1W 1 200x200 1

CA-1W

  • Multi Angle Wall Mount Bracket
    for
    • CX-702/702RS/702MKII
