Automatic Door Sensors
Optex, with its expertise in sensing technologies, develops the sensors for doors to operate automatically without compromising safety. For this, the sensors have been categorized into four types that can be used at different building types depending on the application.
- Activation and Safety Sensors
- Activation Sensors
- Threshold Safety Sensors
- Side Screen Safety Sensors
AIR-SLIDE 2
ACTIVE INFRARED SENSOR
- BLUE ZONE Technology
- Touchless Switch with FLEX EYE
- BLUE ZONE Technology – When the approach area detects a person or object, the sensor will activate the door and turn on the “BLUE ZONE” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “BLUE ZONE” will ignore the door panels and allow the door to safely close.
- Touchless Switch with FLEX EYE – This sensor is designed to detect a hand approaching a touchless plate as a knowing activation device. FLEX EYE means a detection area for hand detection. When FLEXEYE mode is enabled, both FLEXEYE and 2nd to 4th row of detection area will detect passers.
- Building
- BLUE ZONE Technology
- Touchless Switch with FLEX EYE
- Installation tool for area adjustment
i-oneX T
i-oneX T
Activation and Safety Enquire Product Details Applications Key Features Specifications Downloads- BLUEZONE™ Technology
When a person or object is detected in the approach area, the sensor activates the door and turns on the BLUEZONE™ that detects through the threshold. The sensor holds the door in the open position for as long as someone is in the detection area. Once the area is clear, the BLUEZONE™ ignores the door panels and allows the door to safely close. - Built-in Supplemental Side Light Safety
The i-oneX T has a wide and deep detection area that covers not only the threshold area but also the sidelight area. The i-oneX T provides supplemental sidelight safety all from a single sensor. Provide your customers with the highest level of safety and functionality with the i-oneX T from OPTEX. - Easy Adjustment
The sensor can be quickly adjusted for many different applications using the easily set switches and shutters. No external set-up device is needed.
- Buildings
- Blue zone technology
- supplemental sidelight safety
- Adaptable to all environments
- Superior stability
- Optex i-oneX T Catalog
- Optex i-oneX T Web Manual
MIRAGE
MIRAGEThe Optex Mirage is the optimal choice as an active infrared recessed mounted sensor. The sensor is designed to be installed in the header of the door operator or as a built in ceiling mount sensor. The Optex Mirage offers you both safety and activation on all types of automatic doors. It combines easy adjustable settings, providing maximum safety in a wide array of applications.
Enquire
Product Details
Accessories
Downloads
Easy installationThe Optex Mirage is simple to install. All the settings are mechanically adjustable with dipswitch and levers. The smart design makes that the engineer can easily reach the sensor in case adjustment of a setting is necessary.SafetySafety is assured by the two rows of presence detection closest to the door. The sensor detects a person or object and holds the door open as long as they are near the threshold area, even if they stop or pause. Of course the Optex Mirage can also be used as presence detection sensor only, for example as a rear edge safety sensor.DesignThe Optex Mirage is designed for installation in the header of the door operator or as a ceiling mount sensor. Due to its recessed mounted design and the 2 rows of presence detection, this sensor is an elegant and safe solution for installation in the ceiling of curved doors.All conditionsSnow mode and variable sensitivity adjustments make this sensor suitable for every application and even extreme weather conditions.QualityOptex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.Functionality Activation Safety CombinationOpening Size Small Medium
.elementor-2929 .elementor-element.elementor-element-55e8d274:not(.elementor-motion-effects-element-type-background), .elementor-2929 .elementor-element.elementor-element-55e8d274 > .elementor-motion-effects-container > .elementor-motion-effects-layer{background-color:var( --e-global-color-astglobalcolor5 );}.elementor-2929 .elementor-element.elementor-element-55e8d274{transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;}.elementor-2929 .elementor-element.elementor-element-55e8d274 > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-144ac520 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-144ac520 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-42a8e5d7{text-align:center;}.elementor-2929 .elementor-element.elementor-element-18294665 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-18294665 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}.elementor-2929 .elementor-element.elementor-element-22da9557 > .elementor-element-populated{border-style:solid;border-width:1px 1px 1px 1px;transition:background 0.3s, border 0.3s, border-radius 0.3s, box-shadow 0.3s;margin:0px 10px 0px 0px;--e-column-margin-right:10px;--e-column-margin-left:0px;}.elementor-2929 .elementor-element.elementor-element-22da9557 > .elementor-element-populated > .elementor-background-overlay{transition:background 0.3s, border-radius 0.3s, opacity 0.3s;}
Infrared finder
- Optex MIRAGE Manual
- Optex MIRAGE Catalog

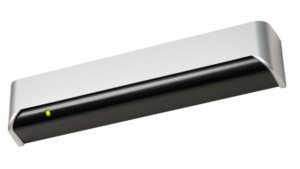

OA-4700
Shutter sensor with mounting height up to 4.7m
- Excellent stability with high density launch area
- High density seatway area improves safety
- Misoperation reduction by seat cancellation
- Area can be independently changed
- Equipped with infinite stop function when multiple areas are detected
- Equipped with additional functions
- Excellent stability with high density launch area - In addition to the spot area arrangement assuming entry from all directions, a high-density area of 60 spots with 5 rows of 12 areas provides safe and comfortable passage.
- High density seatway area improves safety - By installing a high-density seatway area with 12 spots directly under the seat, it supports the safety of vehicles and passers-by.
- Misoperation reduction by seat cancellation - Equipped with a sheet cancellation function that reduces malfunctions caused by shutter shake.
- Area can be independently changed - The safety of both areas can be ensured by setting an area for each of the steps and the vicinity of the shutter.
- Equipped with infinite stop function when multiple areas are detected
- Equipped with additional functions - Equipped with two system output contacts, a stationary object detection function, and an interlock mode.
- Buildings
- Optex OA-4700 Catalog

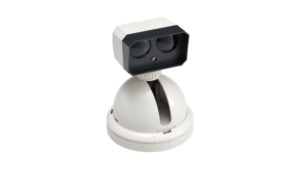

OA-6000
ACTIVE INFRARED SENSOR
- Long-range detection area
- High mounting position with sufficient sensitivity
- Stable operation
- Flexibility
- OPTEX OA-6000 detection area adjusts 160 vertically and 360 horizontally, detecting from high mounting positions up to 6 meters
- Long-range detection area – OPTEX OA-6000 provides a long-range detection area even from high mounting position.
- High mounting position with sufficient sensitivity – Stable detection performance at high mounted position.
- Stable operation – OPTEX OA-6000 will not activate shutters by too much of a wide detection area.
- Flexibility – Detection area can be adjusted 160º vertically and 360º horizontally.
- Factory
- Warehouse
- Long-range detection area
- High mounting position with sufficient sensitivity
- Stable operation
- Flexibility
- Optex OA-6000 Catalog
- Optex OA-6000 Manual

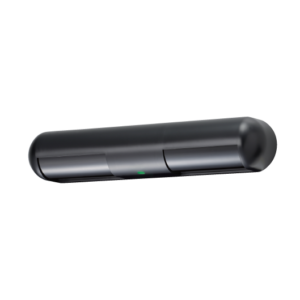

OA-6500S T
ACTIVE INFRARED SENSOR
- Activation and Safety Combination
- Suitable for industrial applications
- Motion detection
- Easy adjustment
- The OPTEX OA-6500 is based on active infrared technique, combining activation and safety into one sensor.
- Combination – The OPTEX OA-6500 is based on active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique the OA-6500 series provides maximum safety around the threshold of an industrial door and offers, at the same time, an extra large motion detection area for door activation with its maximum installation height up to 6.5m.
- Suitable for industrial applications – The OPTEX OA-6500 has a lot of functions optimized for industrial doors. – The 1st row equipped with door cancel function reduces the malfunction caused by the door movement. – The activation & safety outputs can be selected from N.C. and N.O. simply by selecting the dipswitches. – The automatic infinite presence detection increase safely and avoid unwanted door opening due to sudden change in floor condition.
- Motion detection – The large detection area provides fast detection for any traffic, including trucks, approaching from any angle. The sensor’s enhanced pattern depth enables it to detect objects farther away and allows the door to open conveniently. The presence and motion detection area’s can be adjusted independently.
- Easy adjustment – Installation time can be reduced to a minimum by using easily set switches and trimmers, therefore the sensor can be quickly adjusted for many different applications. To adjust the presence detection area the use of an OPTEX Infrared finder is recommended.
- Factory
- Warehouse
- Activation and Safety Combination
- Suitable for industrial applications
- Motion detection
- Easy adjustment
- Optex OA-6500 Catalog
- Optex OA-6500 Manual
OA-72C
Activation and Safety
- Flexible area settings
- Simple adjustment with no tool
- Adaptable to all environments
- Superior stability
- Flexible area settings – The detection depth can be adjusted by either simultaneous adjustment of four rows or by independent adjustment of the pairs of rows or by independent adjustment of the pairs of rows near and further away from the door.
- Simple adjustment with no-tool – Install by simply pushing the unit into installation holes.
- Adaptable to all environments – The detection areas can be freely adjusted in the left, right, and longitudinal directions. The unit makes reliable detection and activation possible right up to the door for various kinds of applications.
- Superior stability – AIR sensors and micro-controllers are generally immune to the effects of external factors such as rain, snow, and insects.
- Buildings
- Flexible area settings
- Simple adjustment with no tool
- Adaptable to all environments
- Superior stability
- Optex OA-72C Manual
- Optex OA-72C Catalog
OA-AXIS II
Activation and Safety
Enquire
Product Details
Features
Downloads
The OPTEX OA-AXIS series is the new automatic door standard for use on sliding doors based on the active infrared technique. The OA-AXIS series has been developed as a combination sensor for threshold safety and activation. Combination The OPTEX OA-AXIS series is the world’s first door sensor based solely on the active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS series provides maximum safety around the threshold while simultaneously offering a large motion detection area for the door activation. Safety The active infrared presence detection of the OA-AXIS series can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. Motion Detection The large detection area enables rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth means it can detect people and objects farther away, thus allowing the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. Variety By offering different types of output contacts the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation Easy Adjustment Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area. Detection Area OA-AXIS I / OA-AXIS II Sensor setting
1st to 3rd rows: +6°
4th and 5th rows: +44° mm (feet, inch) Mounting height
A 2200 (7'3'') 2500 (8'2'') 2700 (8'10'') 3000 (9'10'') 3500 (11'6'') B 140 (6'') 160 (6'') 180 (7'') 200 (8'') 230 (9'') C 420 (1'5'') 480 (1'7'') 520 (1'8'') 580 (1'11'') 670 (2'2'') D 820 (2'8'') 930 (3'1'') 1000 (3'3'') 1100 (3'7'') 1300 (4'3'') E 1350 (4'5'') 1540 (5'1'') 1660 (5'5'') 1850 (6'1'') 2160 (7'1'') F 1900 (6'3'') 2170 (7'1'') 2340 (7'8'') 2600 (8'6'') 3030 (9'11'') G 1330 (4'4'') 1510 (4'11'') 1630 (5'4'') 1810 (5'11'') 2110 (6'11'') H 2050 (6'9'') 2320 (7'7'') 2510 (8'3'') 2790 (9'2'') 3260 (10'8'') I 2780 (9'1'') 3150 (10'4'') 3400 (11'2'') 3790 (12'5'') 4420 (14'6'')
- Combination
- Safety
- Motion Detection
- Variety
- Easy Adjustment
Enquire
Product Details
Features
Downloads
The OPTEX OA-AXIS series is the new automatic door standard for use on sliding doors based on the active infrared technique. The OA-AXIS series has been developed as a combination sensor for threshold safety and activation. Combination The OPTEX OA-AXIS series is the world’s first door sensor based solely on the active infrared technique, combining activation and safety into one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS series provides maximum safety around the threshold while simultaneously offering a large motion detection area for the door activation. Safety The active infrared presence detection of the OA-AXIS series can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. Motion Detection The large detection area enables rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth means it can detect people and objects farther away, thus allowing the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. Variety By offering different types of output contacts the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation Easy Adjustment Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area. Detection Area OA-AXIS I / OA-AXIS II Sensor setting
1st to 3rd rows: +6°
4th and 5th rows: +44° mm (feet, inch) Mounting height
A 2200 (7'3'') 2500 (8'2'') 2700 (8'10'') 3000 (9'10'') 3500 (11'6'') B 140 (6'') 160 (6'') 180 (7'') 200 (8'') 230 (9'') C 420 (1'5'') 480 (1'7'') 520 (1'8'') 580 (1'11'') 670 (2'2'') D 820 (2'8'') 930 (3'1'') 1000 (3'3'') 1100 (3'7'') 1300 (4'3'') E 1350 (4'5'') 1540 (5'1'') 1660 (5'5'') 1850 (6'1'') 2160 (7'1'') F 1900 (6'3'') 2170 (7'1'') 2340 (7'8'') 2600 (8'6'') 3030 (9'11'') G 1330 (4'4'') 1510 (4'11'') 1630 (5'4'') 1810 (5'11'') 2110 (6'11'') H 2050 (6'9'') 2320 (7'7'') 2510 (8'3'') 2790 (9'2'') 3260 (10'8'') I 2780 (9'1'') 3150 (10'4'') 3400 (11'2'') 3790 (12'5'') 4420 (14'6'')
- The actual detection area may become smaller depending on the ambient light, the color / material of the object or the floor as well as the entry speed of the object.
- The values of the chart above is of the emitting spots, but not of the detection area.
- Optex OA-AXIS manual
- Optex OA-AXIS Catalog
OA-AXIS T
Activation and Safety
- Combination
- Safety
- Motion Detection
- Variety
- Easy Adjustment
- Combination
The OPTEX OA-AXIS T is the world’s first door sensor based solely on the active infrared technique, combining activation and safety in one sensor. By using the unique OPTEX presence detection technique, the OA-AXIS T ensures maximum safety around the threshold while simultaneously providing a large motion detection area for the door activation. - Safety
The active infrared presence detection of the OA-AXIS T can be set very accurately and can be moved 6° toward or away from the door. The installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in or near the threshold area, even if they stop or pause. The OPTEX OA-AXIS T has been tested and approved by the German test organization TÜV and complies with the German DIN 18650 and European Norm EN 16005. - Motion detection
The large detection area provides rapid detection of any traffic, including trolleys, approaching from any angle. The sensor’s enhanced pattern depth enables it to detect people and objects farther away and allows the door to open conveniently for them. The presence and motion detection areas can be adjusted independently. - Variety
By offering different types of output contacts, the OA-AXIS series meets the requirements and local standards in many different markets.
OA-AXIS I: 1 relay output for activation and safety
OA-AXIS II: 1 relay for safety and a second relay for motion/activation
OA-AXIS T: 1 relay for motion and activation and an Opto coupler (NPN) in/output for safety - Easy adjustment
Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area.
- Optex OA-AXIS T manual
- Optex OA-AXIS T Catalog
OA-EDGE T
OA-EDGE T M 340BL / OA-EDGE T M 340S / OA-EDGE T S 340BL / OA-EDGE T S 340S / OA-EDGE T M 700BL / OA-EDGE T M 700S / OA-EDGE T S 700BL / OA-EDGE T S 700S / OA-EDGE T MS 700BL / OA-EDGE T MS 700S / OA-EDGE T M 900BL / OA-EDGE T M 900S / OA-EDGE T S 900BL / OA-EDGE T S 900S / OA-EDGE T MS 900BL / OA-EDGE T MS 900S / OA-EDGE T MS 1200BL / OA-EDGE T MS 1200S
Enquire
Product Details
Applications
Key Features
Downloads
The OPTEX OA-EDGE T has been developed to increase the safety of automatic swing doors. The OA-EDGE T is based on OPTEX Active Infrared triangulation technology. Due to its modular design, you can upgrade the safety level of the sensor by adding additional modules. The OA-EDGE T complies with the latest European regulation EN 16005 and has been tested and approved by the German test organization TÜV.
- Easy Installation
The sensor is easy to install by simply clicking the main and secondary modules into the profile. The main and secondary modules are connected by a communication cable with connector. An alternative power supply connector on the main module makes installation quicker and more flexible. - Slim Design
The sensor has a very slim design to ensure it will fit on many different types of swing door. The sensor is available in a silver or black profile complete with a black lens. - Safety
The wide detection area of each module ensures a high level of safety around the door and will prevent the door leaf from hitting an object or person near the door. The OPTEX OA-EDGE T has been tested and approved by the German test organization TÜV and complies with EN 16005. - Module
The sensor can be assembled using main and secondary modules according to the required safety level and the width of the swing door. For a standard configuration of 1 sensor, one main module is required. Depending on the door width, a maximum of 3 secondary modules can be connected to this main module. - Quick Adjustment
Adjustments to the sensor are made using dipswitches and a levelling screw. Once the sensor is set up, an easy push on the function switch will launch the initialization and learning cycle. After installation, the sensor status can be easily checked on the visible LED.
- Buildings
- Easy Installation
- Complies with EN 16005 safety standards
- Slim Design
- Optex OA-Edge T Catalog
- Optex OA Edge T Manual
OA-FLEX AIR T(BL)
Activation and Safety
- Blue zone technology
- Unique Spot Activation Area
- Adaptable to all environments
- Superior stability
- Pushbutton Activation Function
The special OA-FLEX AIR T version offers one narrow activation zone. By marking a zone on the doors or the wall the narrow zone can be used as a virtual touchless switch for activating the doors. The pushbutton function will minimize false openings, making it ideal for hospital or kitchen door applications. All rows are active as soon as the sensor is activated. The sensor will also work as a regular OA-FLEX T offering adjustable activation zones and full door safety and replaces additional safety sensors. - BLUEZONE™ Technology
The presence detection area in the OA-FLEX AIR T consists of three rows: two rows in front of the door and one additional BLUEZONE™ row that looks into the threshold. The BLUEZONE™ activates as soon as the doors start to open and adds an additional row of active infrared. All three rows will be active when someone or something is within the threshold area for as long as the presence timer is set. When the area is safe the doors will start to close again. The BLUEZONE™ recognizes the door movement and will automatically shut off. - Easy Adjustment
Installation time can be minimized using the easily set switches and levers, meaning the sensor can be quickly adjusted for many different applications to modify the presence detection area.
- Buildings
- Blue zone technology
- Unique Spot Activation Area
- Adaptable to all environments
- Superior stability
- Optex OA-FLEX AIR T Manual
OA-FLEX T
Activation and Safety
- Blue zone technology
- Adaptable to all environments
- Superior stability
- BLUE ZONE – When the approach area detects a person or object, the sensor will activate the door and turn on the “BLUE ZONE” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “BLUE ZONE” will ignore the door panels and allow the door to safely close.
- Adaptable to all environments – The detection areas can be freely adjusted in the left, right and longitudinal directions. The unit makes reliable detection and activation possible right up to the door for various kind of applications.
- Superior stability – AIR sensors and micro-controllers are generally immune to the effects of external factors such as rain, snow and insects.
- Buildings
- Blue zone technology
- Adaptable to all environments
- Superior stability
- Optex OA-FLEX T Manual
- Optex OA-FLEX T Catalog
OA-FUNXION LITE
ACTIVE INFRARED SENSOR
- Self-Monitoring
- Wide Detection Area
- Buildings
- Flexibility for Safety and Reliability
- Self-Monitoring
- Optex OA-FUNXION LITE Catalog
- Optex OA-FUNXION LITE Manual
OA-PRESENCE TN
OA-PRESENCE TN
Enquiry Now
Product Details
Applications
Key Features
Downloads
The OPTEX OA-PRESENCE TN is designed to create optimum safety around sliding doors. When using the OA-PRESENCE TN for threshold safety the use of safety beams is no longer mandatory. The OA-PRESENCE TN enables you to install maximum safety in compliance with the latest European and local regulations, including EN 16005 and DIN 18650. The OA-PRESENCE TN has been tested and approved by the German test organization TÜV.
- Side Screen Safety
The OA-PRESENCE TN can be used as a side screen safety sensor. By installing the sensor at the rear end of the door, the OA-PRESENCE TN will secure the side screen area and prevent the doors from hitting someone or something during their opening cycle. - Threshold Safety
The OPTEX OA-PRESENCE TN is the ideal sensor for threshold safety used in combination with external activators like push buttons, security systems, or any kind of activation sensor. By using the OA-PRESENCE TN the threshold is completely secured and prevents the door from closing when it is open or during the closing cycle. - Presence Detection
The active infrared presence detection of the OA-PRESENCE TN can be set very accurately and moved 5° toward or away from the door. When used as a threshold safety sensor the installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in the threshold area, even if they stop or pause. The OPTEX OA-PRESENCE TN has been tested and approved by the German test organization TÜV and complies with DIN 18650 and European norm EN 16005. - Recessed Mount Installation
By installing the OA-PRESENCE TN on a mounting bracket (supplied by the door manufacturer), it is easy to integrate the sensor into the header of the door operator. The sensor is accessible from the bottom so installation and settings can be carried out without removing the operator’s cover.
- Buildings
- Complies with EN 16005 and DIN 18650 safety standards
- Side Screen Safety
- Presence Detection
- Optex OA Presence TN Spec sheet
- Optex OA Presence TN Catalog
- Optex OA Presence TN Manual

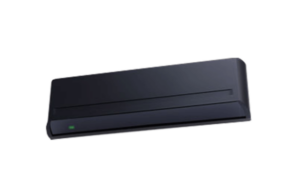

OAM-DUAL T
Activation and Safety
- Bluezone Technology
- Motion Detection
- Easy Installation
- BLUEZONE™ Technology
When a person or object is detected in the approach area, the sensor activates the door and turns on the BLUEZONE™ that detects through the threshold. The sensor holds the door in the open position for as long as someone remains in the detection area. Once the area is clear, the BLUEZONE™ ignores the door panels and allows the door to safely close.
This row is automatically shut off once the whole of the presence detection area has cleared and as soon as the doors start to close. The installation of safety beams is no longer mandatory. The OPTEX OAM-DUAL series has been safety-tested and approved by the German test organization TÜV in compliance with the German DIN 18650:2010 and European Norm EN 16005. - Motion Detection
The large microwave motion detection area provides rapid detection of any traffic, approaching from any angle, which allows the door to open conveniently. The presence and motion detection areas can be adjusted independently. By selecting a dipswitch the active infrared detection area can be set to safety only or to safety and activation. The uni-directional function allows the door to close faster when traffic is moving away from the door, contributing to significant energy saving. - Easy Installation
Installation time can be minimized using the easily set switches and shutters, meaning the sensor can be quickly adjusted for many different applications. The use of an OPTEX Infrared finder is recommended to adjust the presence detection area.
- Buildings
- Blue zone technology
- Adaptable to all environments
- Superior stability
- Optex OAM Dual T Catalog
- Optex OAM Dual T Manual

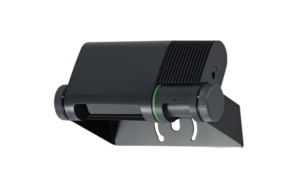

OAM-EXPLORER
ACTIVE INFRARED AND MICROWAVE SENSOR
- Configuration and Fine-tuning via smartphone app
- Wide Detection Area
- Buildings
- Optex OAM-EXPLORER Catalog
- Optex OAM-EXPLORER Manual
OM-105C/106C
The Optex OM-105C and 106C microwave sensors are especially designed to increase the comfort on opening all types of automatic doors. The Optex microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation these sensors will fit on every header or ceiling in any application you can imagine.
Enquire
Product Details
Applications
Key Features
Specifications
Accessories
Downloads
Detection areaThe Optex microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by just clicking the narrow lens on to the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quick and simple for many different applications. No external set-up device is needed.Swing door activationWhen installed above the pivot the Optex OM-106C will ignore the door movement of a swing door. Therefore it is ideal to install as swing door activation sensor.Auto-Caution modeThe Auto-Caution Mode guarantees more reliability to prevent the door from closing, even if a person is wavering in the detection area. The sensor will immediately change from uni directional to multi directional for safety purposes. This function is only available on the OM-106C.Uni-directional settingThe OM-106C is equipped with a dipswitch for uni directional or bi directional mode. By selecting the uni directional mode the sensor will only detect traffic approaching the door, allowing the door to close more quickly for departing traffic. Fast closing of doors offers a large benefit for the end user, because the doors will stay open for a limited time and therefore they will contribute to saving energy.QualityOptex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.Functionality ActivationOpening Size Small Medium Large
- Buildings
- Stylish design
- Flexible detection area
- Special accessories as an optional choice
- Optex OM-105c/106c manual
- Optex OM-105C/106C Catalog
OS-12C
ACTIVE INFRARED SENSOR
Enquire
Product Details
Applications
Key Features
Specifications
Downloads
- Beam for safety
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Safety in case of failure (Failsafe)
Enquire
Product Details
Applications
Key Features
Specifications
Downloads
- Easy Installation
The OPTEX OS-12C amplifier has screwless wiring terminals, which enables faster installation. Pressing the “Teach-In” button automatically sets the proper sensitivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads. - Reliable Sensor Heads
The OPTEX SH-7MC/SH-10MC sensor heads are recognized by door professionals worldwide for their reliability and resistance to sunlight and other interference. Quick-disconnect plugs make installation and service fast and easy. Cables are available in 2 lengths, 7 m (23 feet) or 10 m (33 feet). - Safety
For maximum safety, the amplifier is fail-safe, ensuring that the doors will remain open in the event of any damage to the components. Two LED indicators will blink at the initial setup to alert the installer if the OS-12C is improperly aligned or if sensitivity is insufficient. - Multifunctional Design
The compact design and standard 15 mm beam heads mean the OS-12C is compatible with any type of automatic door and is easy to service or maintain. Optional mounting accessories allow surface or recessed installation and include a reflector kit for simplified wiring. This safety beam is optimal for use with any sliding door, including train doors and automatic gates.
- Buildings
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Failsafe specification
OS-12C T
ACTIVE INFRARED SENSOR
- Beam for safety
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Safety in case of failure (Failsafe)
- Easy Installation
The OPTEX OS-12CT amplifier has screwless wiring terminals, which enables faster installation. Pressing the “Teach-In” button automatically sets the correct sensitivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads. - Reliable Sensor Heads
The OPTEX SH-7MC/SH-10MC sensor heads are recognized by door professionals worldwide for their reliability and resistance to sunlight and other interference. Quick-disconnect plugs make installation and service fast and easy. Cables are available in 2 lengths, 7 m (23 feet) or 10 m (33 feet). - Safety
For maximum safety, the amplifier is fail-safe, ensuring that the doors will remain open in the event of any damage to the components. Two LED indicators will blink at the initial setup to alert the installer if the OS-12CT is improperly aligned or if sensitivity is insufficient. - Multifunctional Design
The compact design and standard 15 mm beam heads mean the OS-12CT is compatible with any type of automatic door and is easy to service or maintain. Optional mounting accessories allow surface or recessed installation and include a reflector kit for simplified wiring. This safety beam is optimal for use with any sliding door, including train doors and automatic gates. - Monitoring Capability
The OS-12CT has monitoring capability. It monitors all of its critical functions and notifies controls if an error occurs. Self-monitoring capability ensures a higher level of performance over the life of the sensor.
- Buildings
- Automatic adjustment to optimum sensitivity
- Self-diagnosis function
- Multi-use 1beam/2beam amplifier for reduced size and weight
- Failsafe specification
- Optex OS-12 C T Catalog
- Optex OS-12C T Manual
ProSwing Elite T
Activation and Safety
- Monitoring Capability.
- No overhead safety sensor required.
- Large and Adjustable Detection Area.
- No Overhead Safety Sensor Required
The OPTEX ELITE T provides a full detection pattern that covers the entire swing path of the doors in their fully open and fully closed positions, eliminating the need for an overhead safety sensor. - Large and Adjustable Detection Area
The OPTEX ELITE T has a large detection area that can detect beyond the normal area around the moving part of the door. The sensor creates a layer of awareness around the door to ensure safety.
- Buildings
- Monitoring Capability.
- No overhead safety sensor required.
- Large and Adjustable Detection Area.
- Optex ProSwing Elite T Catalog
- Optex ProSwing Elite T Manual
X-ZONE
COMBINATION SENSOR
- Look back (BLUE ZONE)
- Inner cover design
- I.N.C. logic for stable operation
- Uni-directional function
- Look back (BLUE ZONE) – When the approach area detects a person or object, the sensor will activate the door and turn on the “Lookback(BLUE ZONE)” which detects through the threshold. As long as someone is in the detection area, the sensor will keep the door in the open position. Once the area is cleared, the “Look back(BLUE ZONE)” will ignore the door panels and allow the door to safely close.
- Inner cover design – The OAM-DUAL(X-ZONE) is designed with an inner cover that completely protects all sensitive PC boards and optical systems. This reduces the chance of damage during installation and dramatically increases the longevity of the sensor..
- I.N.C. logic for stable operation – The OAM-DUAL(X-ZONE) remains stable in all environments thanks to our innovative I.N.C. Logic (Intelligent Noise Cancelling). This feature allows the OAM-DUAL(X-ZONE) to reliably detect people near the door while ignoring interference from rain, snow, vibration, insects and ambient light sources.
- Uni-directional function – The OAM-DUAL(X-ZONE) can be adjusted to ignore traffic moving away from the sensor and reset more quickly. This will allow the door to close more quickly which reduces airflow between environmentally-controlled areas and the outdoors. This feature will save your customer money over the life of the sensor. Reduce power consumption and protect the environment with the OAM-DUAL(X-ZONE) from OPTEX.
- Building
- Look back (BLUE ZONE)
- Inner cover design
- I.N.C. logic for stable operation
- Uni-directional function
- Installation tool for area adjustment
